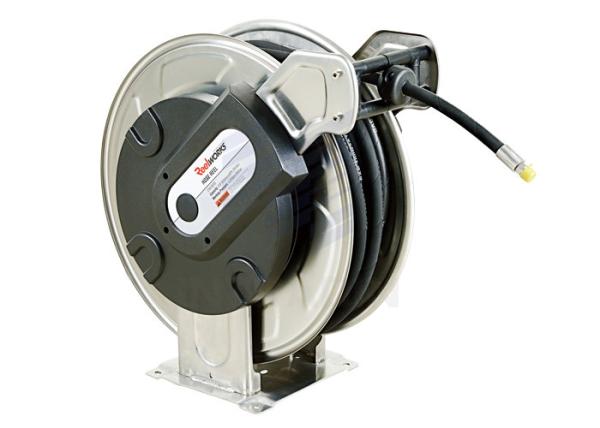

Heavy Duty Stainless Steel Air And Water Hose Reels For Sale 5 Years Warranty

Name: Heavy Duty Stainless Steel Air And Water Hose Reels For Sale 5 Years Warranty
Brand: Reelworks
Price: 1 USD

China Heavy Duty Stainless Steel Air And Water Hose Reels For Sale 5 Years Warranty wholesale

Brand Name : Reelworks

Model Number : 261

Place of Origin : China

MOQ : 50pcs

Price : negotiation

Payment Terms : L/C, T/T

Supply Ability : 40000pcs/month

Delivery Time : 40 Working Day

Packaging Details : 1pc in carton and in Pallet

Product Name : Industrial Air and Water Hose Reel

Hose Length : 25M-40M

Application : Air / Water / Oil / Grease

Patent : 201330376507.3

Hose I.D. : 3/8" ; 3/4" ; 1/2"; 1"

Hose Stopper : Universal hose stopper

Warranty : 5 years

Hose Material : NBR rubber ; SAE 100R wire braid

Installation : Wall; Bench ; Ceiling

Material : Stainless steel

Contact Now

Heavy Duty Stainless Steel Air And Water Hose Reel With 5 Years Warranty

Specification:

2161 LOW PRESSURE AIR/WATER HOSE REELS

Hose maximum temperature 210˚F (100˚C).

MODEL	Hose I.D.	Hose Length	Working Pressure	Inlet/Outlet	Hose Material	Package	N.W/G.W	Q'TY 20'CY
21617253	3/8"	25m	20bar	3/8"	NBR Rubber	64.8x30.9x66.0cm	33.0/35.8 kgs	200 pcs
21617254	1/2"	25m	20bar	1/2"	NBR Rubber	64.8x30.9x66.0cm	34.0/37.0 kgs	200 pcs
21627303	3/8"	30m	20bar	3/8"	NBR Rubber	62.9x55.1x72.4cm	42.6/53.5 kgs	170 pcs
21627304	1/2"	30m	20bar	1/2"	NBR Rubber	62.9x55.1x72.4cm	46.7/57.6 kgs	170 pcs
21637406	3/4"	40m	20bar	3/4"	NBR Rubber	62.9x55.1x72.4cm	73.9/87.1 kgs	110 pcs
21637308	1"	30m	20bar	1"	NBR Rubber	62.9x55.1x72.4cm	68.2/82.1 kgs	110 pcs

2161 MEDIUM PRESSURE WATER/OIL REELS

Hose maximum temperature 210˚F (100˚C).

MODEL	Hose I.D.	Hose Length	Working Pressure	Inlet/Outlet	Hose Material	Package	N.W/G.W	Q'TY 20'CY
21618253	3/8"	25m	155bar	3/8"	S.A.E.100R1 Wire Braid	64.8x30.9x66.0cm	37.2/39.9 kgs	200 pcs
21618254	1/2"	25m	140bar	1/2"	S.A.E.100R1 Wire Braid	64.8x30.9x66.0cm	40.8/43.9 kgs	200 pcs
21628303	3/8"	30m	155bar	3/8"	S.A.E.100R1 Wire Braid	62.9x55.1x72.4cm	45.8/57.1 kgs	170 pcs
21628304	1/2"	30m	140bar	1/2"	S.A.E.100R1 Wire Braid	62.9x55.1x72.4cm	48.9/60.8 kgs	170 pcs

2161 HIGH PRESSURE GREASE REELS

Hose maximum temperature 210˚F (100˚C).

MODEL	Hose I.D.	Hose Length	Working Pressure	Inlet/Outlet	Hose Material	Package	N.W/G.W	Q'TY 20'CY
21619253	3/8"	25m	280bar	3/8"	S.A.E.100R2 Wire Braid	4.8x30.9x66.0cm	40.8/43.9 kgs	200 pcs
21629303	3/8"	30m	280bar	3/8"	S.A.E.100R2 Wire Braid	62.9x55.1x72.4cm	50.3/63.0 kgs	170 pcs

Descriptions:

• Heavy duty designs were selected to meet the demands of an industrial grade
reel for continuous, trouble-free operation
• All stainless steel components ensures safety to use in high demanding
environments of food and chemical industries
• “Viton” seals included

Type of Fluid to be Delivered and Pressure of Fluid
Air-Water 20bar		DEF 10bar
Air-Water 20bar		Oil-Water 200bar
Grease and similar media 300bar		Diesel fuel 10bar

• Medium pressure hose reel are furnished standard with S.A.E.100R1 at one wire braid hose suitable for air, water
or oil application in auto and truck maintenance facilities
• High pressure reel are furnished standard with S.A.E.100R2 at two wire braid hose suitable for grease application
• The adjustable arms allow floor, wall or ceiling (for 2161 series) can be easily reposition according to needs
• The hose reel drum is sturdy & practical with stiffening ribs & flange edges

Product Tags:

heavy duty water hose reel

spring driven hose reel

Heavy Duty Stainless Steel Air And Water Hose Reels For Sale 5 Years Warranty Images
